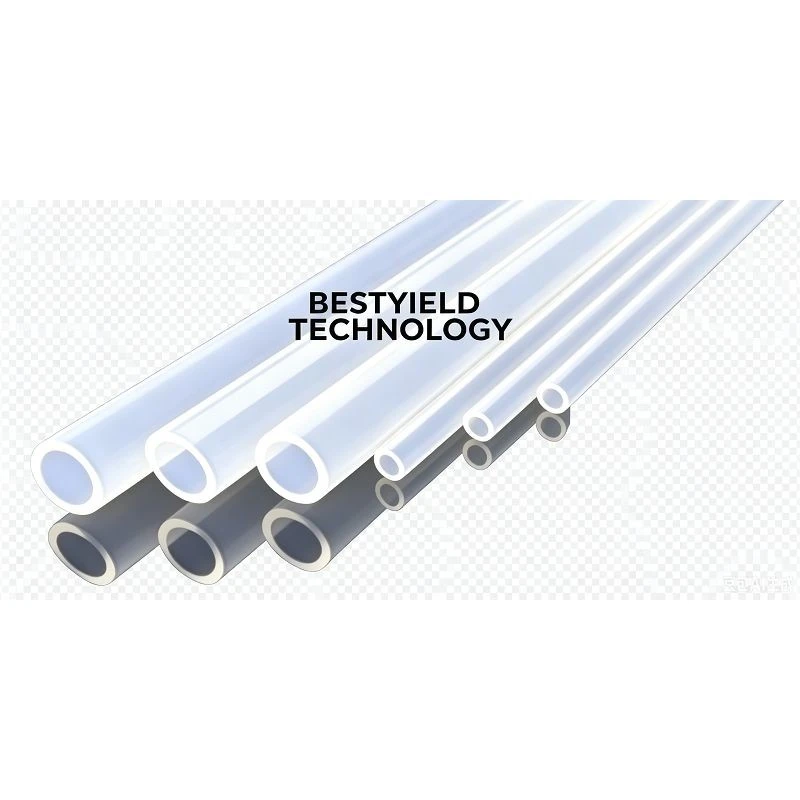

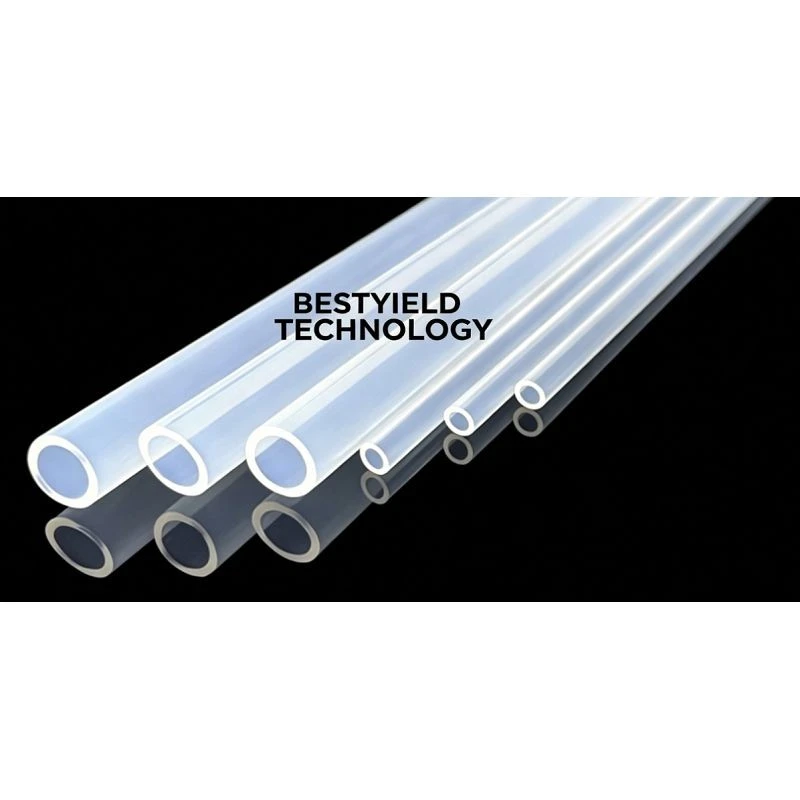

FEP Tube
Tube: FEP
Color: Natural or multiple colors
Temperature range: -150°C to +200°C
Compliance standards: RoHS, REACH
Flame resistance rating: HB, V1, V2
- Product Introduction
BESTYIELD Technology (Huizhou) Co., Ltd. is one of the leading manufacturers and suppliers of fep tube in China, also supports customized service. Welcome to wholesale bulk fep tube in stock here and get pricelist from our factory. For price consultation, contact us.
Features and Benefits
- Tube: FEP
- Color: Natural or multiple colors
- Temperature range: -150°C to +200°C
- Compliance standards: RoHS, REACH
- Flame resistance rating: HB, V1, V2
Detailed Description
FEP (Fluorinated Ethylene Propylene) is a high-performance fluoropolymer. It is resistant to almost all corrosive chemicals, solvents, liquids and gases. It features high clarity, allowing direct visual observation of internal media flow.
It maintains good flexibility even at low temperatures, and has low surface friction. The material will not absorb media or produce leachables, ensuring high purity of conveyed substances. It also delivers reliable dielectric strength, self-extinguishing performance and long flex life, and can be processed for laser marking.
Product Application
Chemical processing, laboratory, pharmaceutical, food & beverage and semiconductor industries, especially for conveying corrosive media, high-purity liquids and where visual inspection of flow is required.
Product Parameters
|
Part |
Hose I.D. |
Hose O.D. |
Working Pressure |
Burst Pressure |
MIN. Bend Radius |
|||||
|
inch |
mm |
inch |
mm |
psi |
bar |
psi |
bar |
inch |
mm |
|
|
906-01 |
0.039 |
1 |
0.118 |
3 |
392 |
27.0 |
1175 |
81.0 |
1/4 |
6 |
|
906-02 |
0.079 |
2 |
0.157 |
4 |
290 |
20.0 |
870 |
60.0 |
1/2 |
13 |
|
906-03 |
0.118 |
3 |
0.197 |
5 |
218 |
15.0 |
653 |
45.0 |
3/4 |
19 |
|
906-04 |
0.157 |
4 |
0.236 |
6 |
174 |
12.0 |
522 |
36.0 |
1-1/8 |
29 |
|
906-05 |
0.197 |
5 |
0.276 |
7 |
145 |
10.0 |
435 |
30.0 |
1-3/4 |
44 |
|
906-06 |
0.236 |
6 |
0.315 |
8 |
131 |
9.0 |
392 |
27.0 |
2 |
51 |
|
906-07 |
0.276 |
7 |
0.354 |
9 |
116 |
8.0 |
348 |
24.0 |
2-1/8 |
54 |
|
906-08 |
0.315 |
8 |
0.394 |
10 |
102 |
7.0 |
305 |
21.0 |
2-3/4 |
70 |
|
906-09 |
0.394 |
10 |
0.472 |
12 |
87 |
6.0 |
261 |
18.0 |
3 |
76 |
- Remarks: Inner and outer diameter sizes are customizable.
