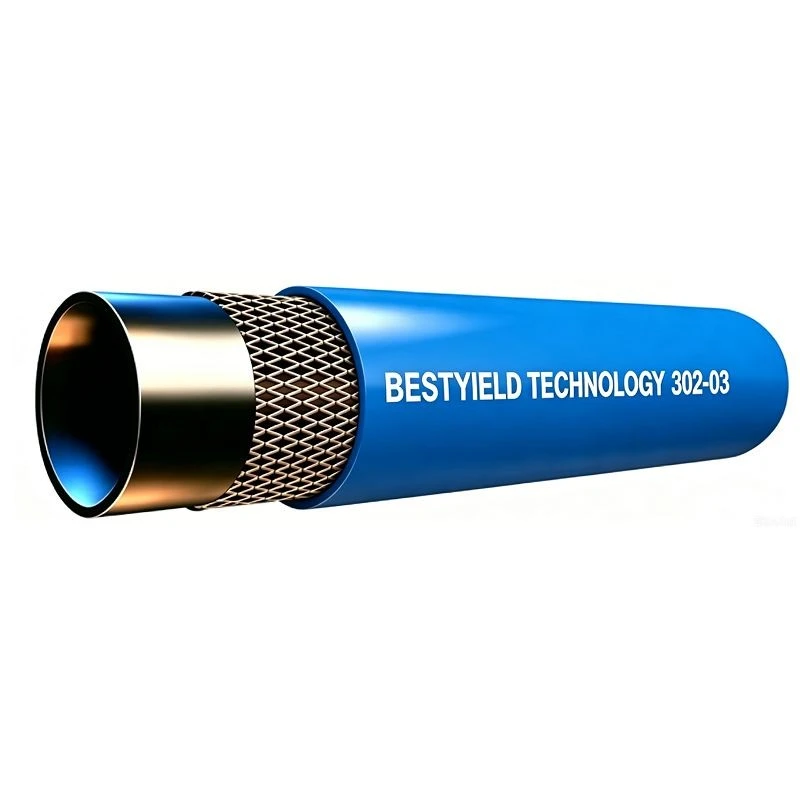

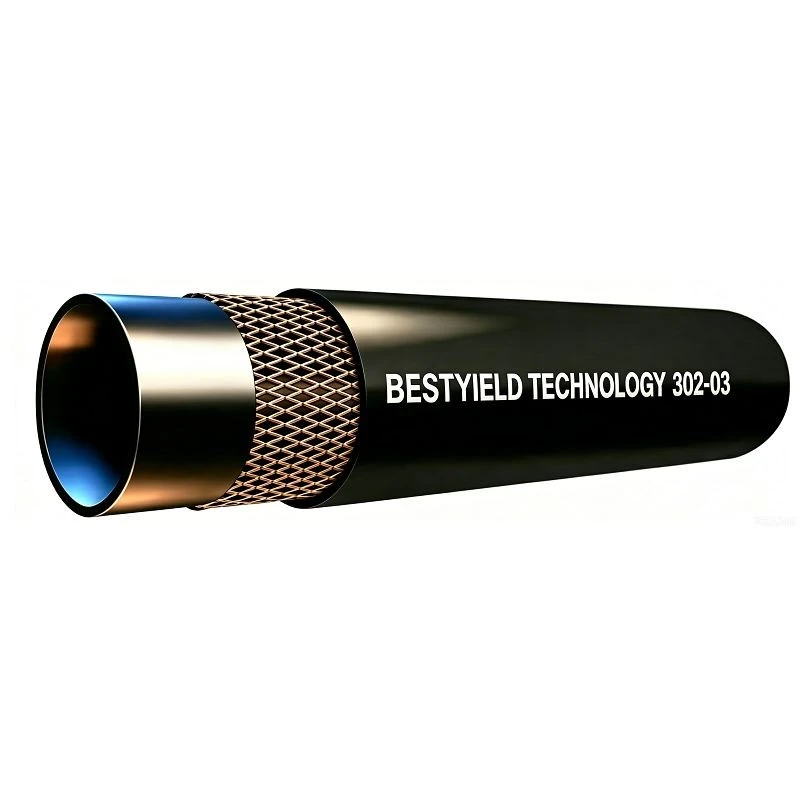

EPDM Inside Braided Hose

BESTYIELD Technology (Huizhou) Co., Ltd. is one of the leading manufacturers and suppliers of epdm inside braided hose in China, also supports customized service. Welcome to wholesale bulk epdm inside braided hose in stock here and get pricelist from our factory. For price consultation, contact us.



• Tube: Black EPDM
• Inside braid: Polyester fiber, Aramid fiber, Copper-plated steel wire
• Cover: EPDM, smooth finish
• Color: Black or multiple colors
• Temperature range: -40°C to +150°C
• Compliance standards: RoHS, REACH, HF
• Flame resistance rating: HB, V1, V2, V0, VW-1, EN45545
• Low extractables materials: Minimizes fluid contamination and permeation, ensures fluid purity
• Product service life: Exceeding 10 years
• Application: coolants like PG25 and deionized glycol mixes, air, steam, phosphate ester



The inner tube adopts sulfur-based or peroxide curing system. It features excellent compatibility with deionized water + ethylene glycol (or propylene glycol) and resists corrosion from various chemicals.

The outer cover has obtained flame-retardant certifications such as UL94-V0. Red, yellow and blue colors are available for customers, and other colors can be customized.

It delivers superior UV resistance, ozone resistance, weather resistance, high-low temperature resistance and good electrical insulation properties, suitable for conveying media including coolant, steam, high-temperature water, hot air, weak acids and weak alkalis.



IT liquid cooling, automotive liquid cooling, electric power, home appliances, rail transit and other fields.



Part Number	Hose I.D.		Hose O.D.		Working Pressure		Burst Pressure		MIN. Bend Radius
	inch	mm	inch	mm	psi	MPa	psi	MPa	inch	mm
302-01	1/8	3.2	0.31	7.9	218	1.5	653	4.5	5/8	16
302-02	3/16	4.8	0.37	9.5					3/4	19
302-03	1/4	6.3	0.50	12.7					1	25
302-04	5/16	8.0	0.55	14.0					1-3/8	35
302-05	3/8	9.5	0.63	15.9					1-9/16	39
302-06	1/2	12.7	0.79	20.0					2-3/4	70
302-07	5/8	16.0	0.94	24.0					3-1/2	89
302-08	3/4	19.0	1.06	27.0					4-1/2	115
302-09	7/8	22.2	1.26	32.0					5-1/2	140
302-10	1	25.4	1.39	35.4	174	1.2	522	3.6	6-1/2	165
302-11	1-1/4	31.8	1.77	45.0					8-1/2	216
302-12	1-1/2	38.1	2.00	50.8					9-9/16	243
302-13	1-3/4	44.5	2.32	59.0					11-1/8	283
302-14	2	50.8	2.76	70.0					13-1/4	336
302-15	2-1/2	63.5	3.07	78.0					14-3/4	375
302-16	3	76.2	3.54	90.0					17	432
302-17	3-1/2	89.0	4.13	105.0					19-13/16	504
302-18	4	101.6	4.72	120.0					22-11/16	576



• Remarks: Inner and outer diameter sizes are customizable.



The EPDM cover compound of this hose has been specifically formulated and certified to meet the UL94 V-0 flame retardant rating - the highest vertical burn classification, requiring that the material self-extinguishes within 10 seconds after each flame application with no dripping or flaming particles:

• Test method: UL94 vertical burn test per ASTM D3801. Specimen dimensions: 127mm × 12.7mm × hose wall thickness. Five specimens tested in each conditioned and aged state.
• Flame retardant mechanism: The compound incorporates a halogen-free phosphorus-nitrogen synergistic flame retardant system. Upon exposure to flame, the system forms a stable intumescent char layer that insulates the underlying polymer from heat and oxygen, simultaneously releasing non-combustible gases (N₂, CO₂) that dilute the flame zone.



While black is the standard color for most industrial applications, this hose series offers extensive color customization capabilities that serve both functional and aesthetic purposes:

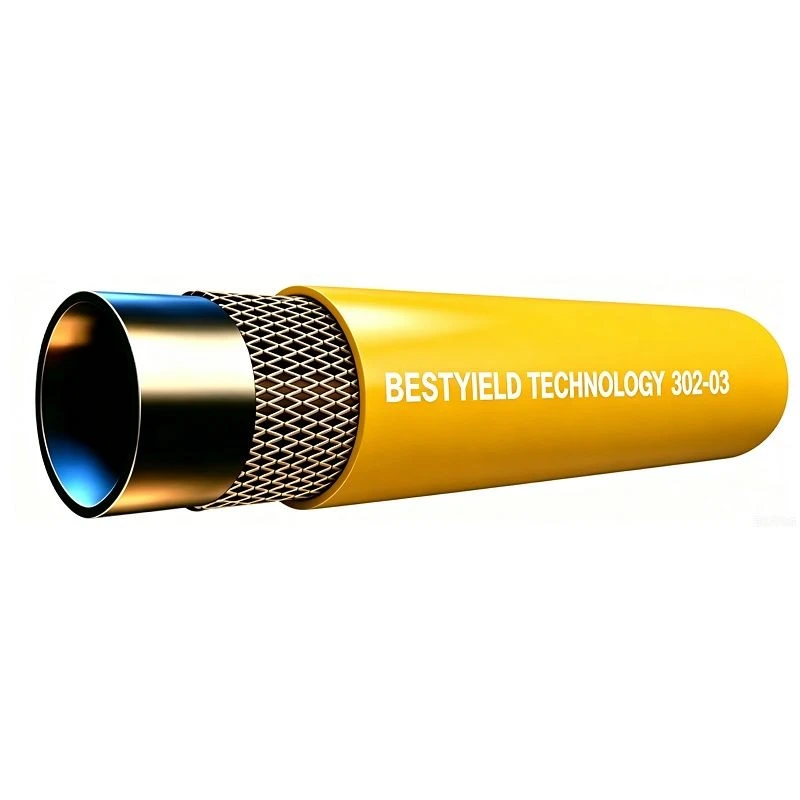

• Standard colors: Red, yellow, and blue are available from stock with no minimum order quantity. These colors are commonly used for hot/cold line identification (red = hot supply, blue = cold return) or safety color coding per ISO 20560.
• Custom colors: Green, orange, white, gray, and other RAL colors available with minimum order of 300m per color. Custom color matching to customer-provided Pantone or RAL samples available with 2-week lead time.
• Color stability: All pigments are UV-stable and rated for outdoor exposure >5 years without significant fading (ΔE < 3.0 per CIE L*a*b* measurement after 2,500 hours QUV acceleration testing).



The EPDM compound provides excellent dielectric properties, making this hose suitable for applications near high-voltage equipment or where electrical isolation of the fluid path is required:

The non-conductive nature of the EPDM cover also eliminates the risk of galvanic corrosion between the hose and metallic fittings or adjacent conductive structures.



The EPDM inner tube can be cured using either sulfur-based or peroxide systems, each offering distinct advantages:

• Sulfur curing: Lower cost, faster cure speed, excellent fatigue resistance. Preferred for general-purpose cooling applications where the hose experiences frequent flexing or vibration. Slight risk of sulfur migration in ultra-pure water systems.
• Peroxide curing: Superior thermal stability (continuous use to +125°C), minimal ion extraction (<0.3 μS/m), better compression set. Specified for high-temperature steam applications, semiconductor-grade DI water systems, and applications requiring the lowest possible ionic contamination.
