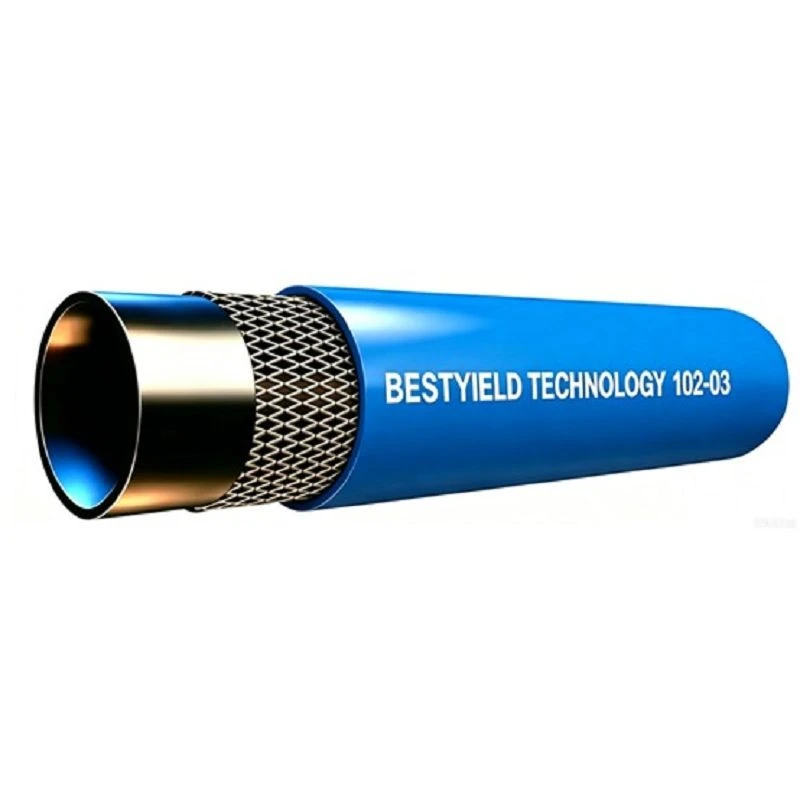

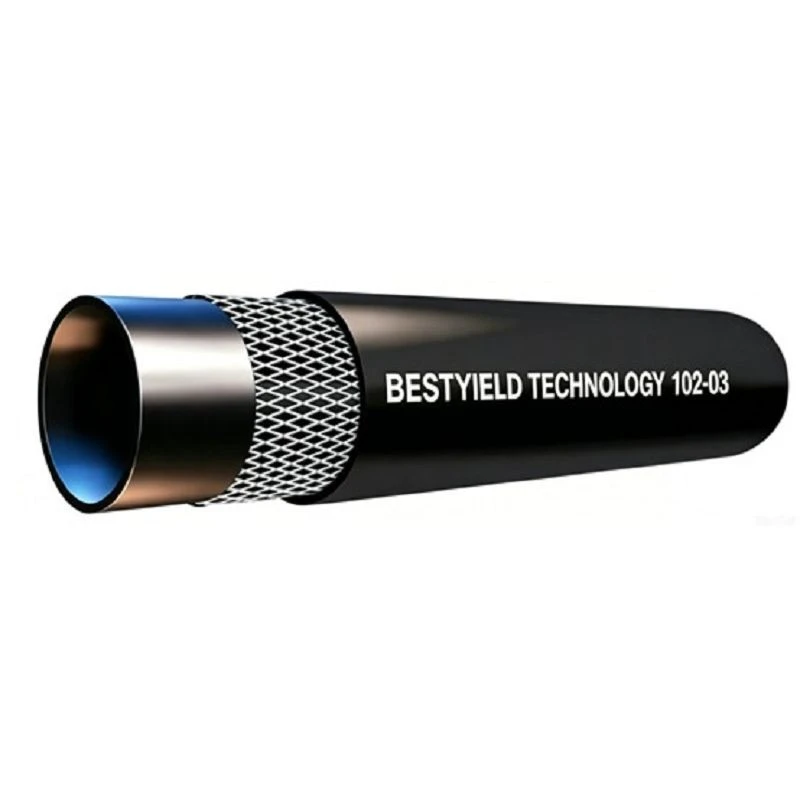

IIR+EPDM Inside Braided Hose

BESTYIELD Technology (Huizhou) Co., Ltd. is one of the leading manufacturers and suppliers of iir+epdm inside braided hose in China, also supports customized service. Welcome to wholesale bulk iir+epdm inside braided hose in stock here and get pricelist from our factory. For price consultation, contact us.



• Tube: Black IIR+EPDM, halogen free
• Inside braid: Polyester fiber, Aramid fiber, Copper-plated steel wire
• Cover: IIR+EPDM, smooth finish

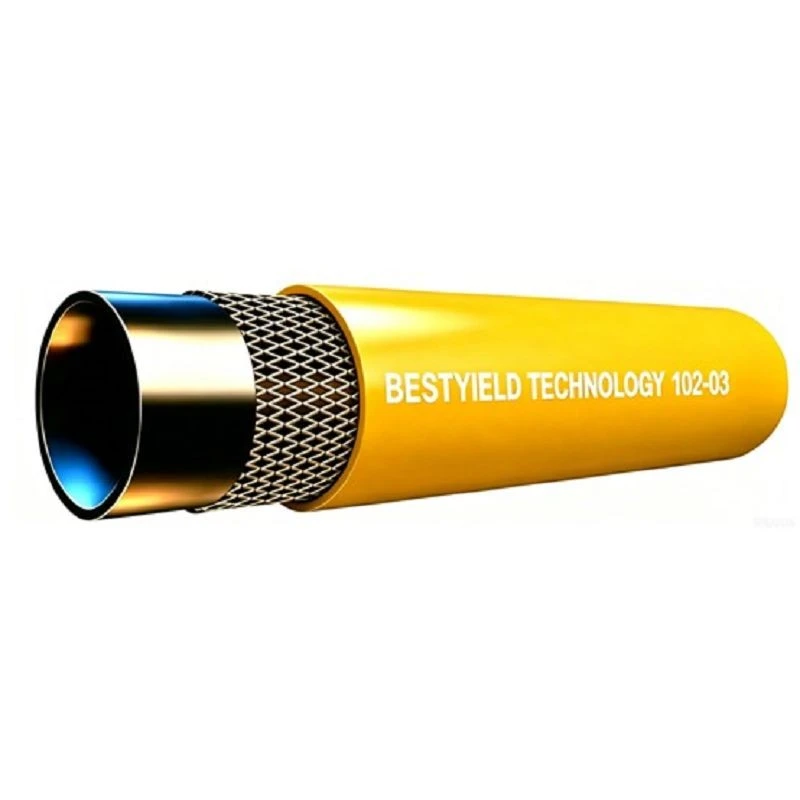

• Color: Black or multiple colors
• Temperature range: -40°C to +150°C
• Compliance standards: RoHS, REACH, HF
• Flame resistance rating: HB, V1, V2, V0, VW-1, EN45545
• Low extractables materials: Minimizes fluid contamination and permeation, ensures fluid purity
• Product service life: Exceeding 10 years
• Application: coolants like PG25 and deionized glycol mixes, air, phosphate ester



Optimizing a unique IIR+EPDM compound formula, it combines the ultra-low gas permeability of butyl rubber (IIR) with the excellent weather resistance and aging resistance of EPDM rubber. This greatly reduces the permeation rate of the hose during service and significantly extends its service life, making it suitable for a variety of severe working conditions. With outstanding ozone resistance and UV resistance, it maintains stable performance even under long-term outdoor exposure or high-frequency vibration environments. It requires no frequent replacement and effectively reduces users' maintenance costs.



Data centers, personal PCs, automobiles, projectors, new energy vehicles, charging piles, etc.



Part Number	Hose I.D.		Hose O.D.		Working Pressure		Burst Pressure		MIN. Bend Radius
	inch	mm	inch	mm	psi	MPa	psi	MPa	inch	mm
102-01	1/8	3.2	0.31	7.9	218	1.5	653	4.5	5/8	16
102-02	3/16	4.8	0.37	9.5					3/4	19
102-03	1/4	6.3	0.50	12.7					1	25
102-04	5/16	8.0	0.55	14.0					1-3/8	35
102-05	3/8	9.5	0.63	15.9					1-9/16	39
102-06	1/2	12.7	0.79	20.0					2-3/4	70
102-07	5/8	16.0	0.94	24.0					3-1/2	89
102-08	3/4	19.0	1.06	27.0					4-1/2	115
102-09	7/8	22.2	1.26	32.0					5-1/2	140
102-10	1	25.4	1.39	35.4	174	1.2	522	3.6	6-1/2	165
102-11	1-1/4	31.8	1.77	45.0					8-1/2	216
102-12	1-1/2	38.1	2.00	50.8					9-9/16	243
102-13	1-3/4	44.5	2.32	59.0					11-1/8	283
102-14	2	50.8	2.76	70.0					13-1/4	336
102-15	2-1/2	63.5	3.07	78.0					14-3/4	375
102-16	3	76.2	3.54	90.0					17	432
102-17	3-1/2	89.0	4.13	105.0					19-13/16	504
102-18	4	101.6	4.72	120.0					22-11/16	576



• Remarks: Inner and outer diameter sizes are customizable.



The internal fiber braid is the primary load-bearing element, fully encapsulated within the IIR+EPDM cover for complete environmental isolation. Three reinforcement options are available:

• Polyester fiber (standard): Tensile strength 90cN/tex, elongation 10-20%. Best balance of flexibility, fatigue resistance (500,000+ impulse cycles at 1.5 MPa), and cost-effectiveness for general cooling circuits.
• Aramid fiber (high-strength): Tensile strength up to 220cN/tex with near-zero elongation (<4%). Specified for long horizontal runs where dimensional stability under pressure is essential.
• Copper-plated steel wire: Tensile strength up to 2000 MPa, EMI shielding >40 dB. For applications near high-frequency power electronics requiring galvanic compatibility with brass/copper fittings.



The configuration is recommended for:

• Indoor data center cooling: Hose routed in enclosed cable trays, under raised floors, or within server rack manifolds.
• PC and workstation liquid cooling: Compact form factor and light weight essential for integration within PC chassis.
• Automotive and NEV cooling: Smooth outer surface facilitates clean routing through engine compartment harnesses.
• Charging pile cooling: Controlled installation environment with conduit or enclosure protection.

For outdoor exposure, high-abrasion, or rodent-risk environments, the 103 series is recommended.



• Minimum bend radius: Observe values in parameter table. The smooth cover allows slightly tighter bends than externally braided variants, but exceeding the minimum causes internal braid distortion.
• Routing: Secure at ≤300mm intervals for vertical runs, ≤500mm for horizontal. Use padded clamps to prevent point-loading.
• Connector compatibility: Push-on fittings require I.D. tolerance ±0.2mm. Excellent seal integrity with ORFS and JIC fittings.
• Fluid compatibility: PG25, EG30, deionized water (resistivity > 1 MΩ·cm), phosphate ester hydraulic fluids. Not for mineral oils or aromatic solvents.
• Storage: Shelf life 3 years from manufacture date at 10-30°C, away from UV and ozone sources.
