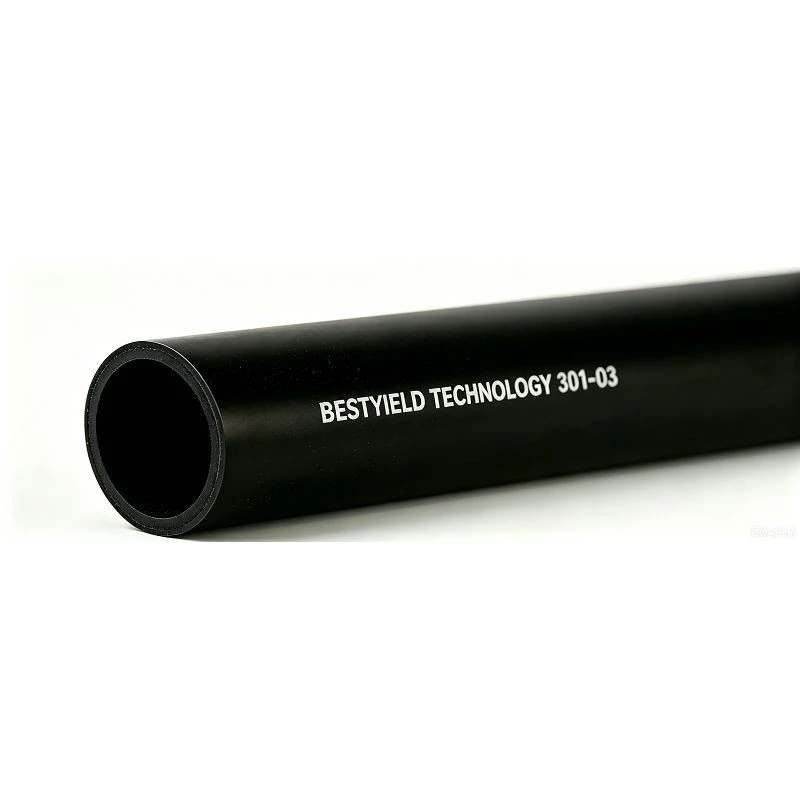

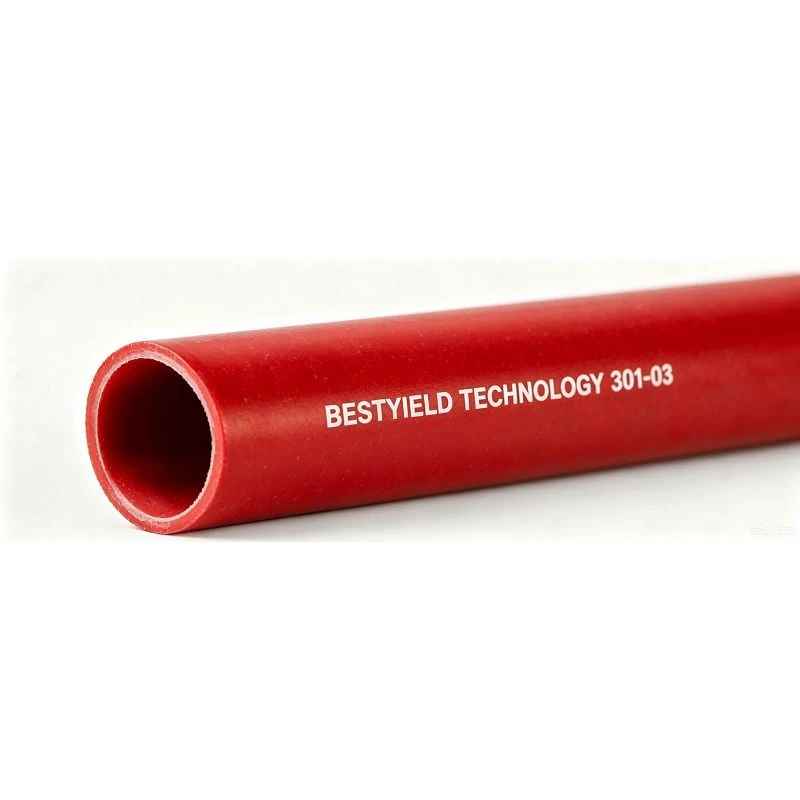

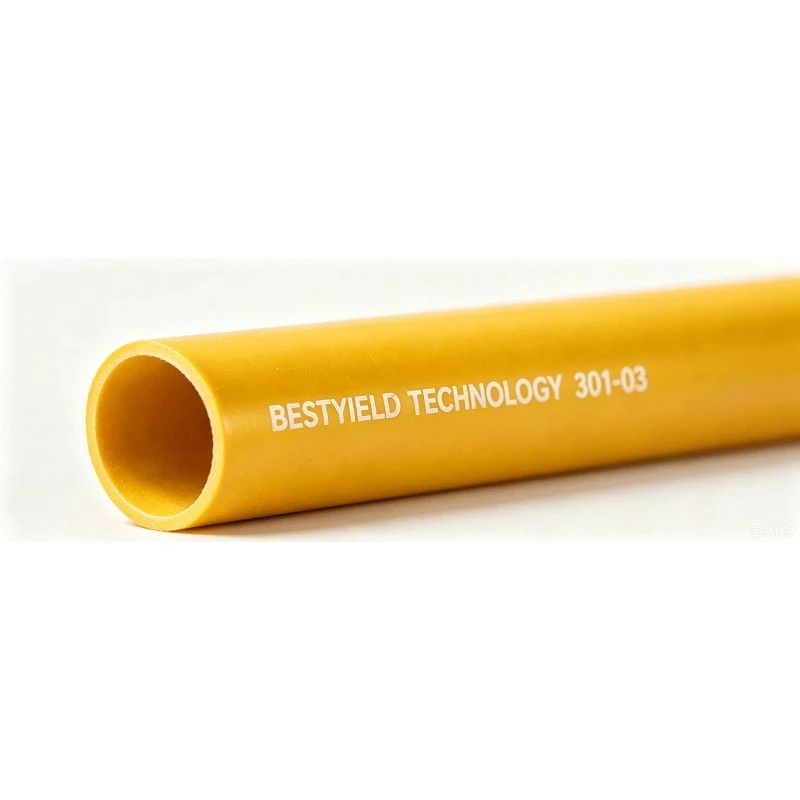

EPDM Tubing
Tube: EPDM, halogen free
Color: Black or multiple colors
Outside braid: Polyester or stainless steel (Optional)
Temperature range: -40°C to +150°C
Compliance standards: RoHS, REACH, HF
- Product Introduction
BESTYIELD Technology (Huizhou) Co., Ltd. is one of the leading manufacturers and suppliers of epdm tubing in China, also supports customized service. Welcome to wholesale bulk epdm tubing in stock here and get pricelist from our factory. For price consultation, contact us.
Features and Benefits
- Tube: EPDM, halogen free
- Color: Black or multiple colors
- Outside braid: Polyester or stainless steel (Optional)
- Temperature range: -40°C to +150°C
- Compliance standards: RoHS, REACH, HF
- Flame resistance rating: HB, V1, V2, V0, VW-1, EN45545
- Low extractables materials: Minimizes fluid contamination, ensures fluid purity
- Product service life: Exceeding 10 years
- Fluid: coolants like PG25 and deionized glycol mixes, air, steam,phosphate ester
Detailed Description
Polymer molecular structure with saturated main chain, sulfur-based curing system or peroxide curing system. It features excellent compatibility with deionized water + ethylene glycol (or propylene glycol), and resistance to erosion by various chemicals. It possesses superior UV resistance, ozone resistance, weather resistance, high-low temperature resistance, as well as good electrical insulation properties. The operating temperature ranges from -40℃ to 150℃. It can convey media such as coolant, steam, high-temperature water, hot air, weak acids and weak alkalis.
Product Application
IT liquid cooling, automotive liquid cooling, electric power, home appliances, rail transit and other fields.
Product Parameters
|
Part |
Hose I.D. |
Hose O.D. |
Working Pressure |
Burst Pressure |
MIN. Bend Radius |
|||||
|
inch |
mm |
inch |
mm |
psi |
MPa |
psi |
MPa |
inch |
mm |
|
|
301-01 |
1/8 |
3.2 |
0.31 |
7.9 |
72.5 |
0.5 |
217.5 |
1.5 |
1-9/16 |
40 |
|
301-02 |
3/16 |
4.8 |
0.37 |
9.5 |
1-3/4 |
45 |
||||
|
301-03 |
1/4 |
6.3 |
0.50 |
12.7 |
2-9/16 |
65 |
||||
|
301-04 |
5/16 |
8.0 |
0.55 |
14.0 |
2-3/4 |
70 |
||||
|
301-05 |
3/8 |
9.5 |
0.63 |
15.9 |
3-1/8 |
80 |
||||
|
301-06 |
1/2 |
12.7 |
0.79 |
20.0 |
43.5 |
0.3 |
145 |
1.0 |
3-15/16 |
100 |
|
301-07 |
5/8 |
16.0 |
0.94 |
24.0 |
4-3/4 |
120 |
||||
|
301-08 |
3/4 |
19.0 |
1.06 |
27.0 |
5-5/16 |
135 |
||||
|
301-09 |
7/8 |
22.2 |
1.26 |
32.0 |
6-5/16 |
160 |
||||
|
301-10 |
1 |
25.4 |
1.39 |
35.4 |
7 |
178 |
||||
|
301-11 |
1-1/4 |
31.8 |
1.77 |
45.0 |
8-7/8 |
225 |
||||
|
301-12 |
1-1/2 |
38.1 |
2.00 |
50.8 |
10 |
254 |
||||
|
301-13 |
1-3/4 |
44.5 |
2.32 |
59.0 |
11-5/8 |
295 |
||||
|
301-14 |
2 |
50.8 |
2.76 |
70.0 |
13-3/4 |
350 |
||||
|
301-15 |
2-1/2 |
63.5 |
3.07 |
78.0 |
15-3/8 |
390 |
||||
|
301-16 |
3 |
76.2 |
3.54 |
90.0 |
17-11/16 |
450 |
||||
|
301-17 |
3-1/2 |
89.0 |
4.13 |
105.0 |
20-11/16 |
525 |
||||
|
301-18 |
4 |
101.6 |
4.72 |
120.0 |
23-5/8 |
600 |
||||
- Remarks: Inner and outer diameter sizes are customizable; parameters in parentheses represent the outside braided structure.
