EPDM Outside Braided Hose

BESTYIELD Technology (Huizhou) Co., Ltd. is one of the leading manufacturers and suppliers of epdm outside braided hose in China, also supports customized service. Welcome to wholesale bulk epdm outside braided hose in stock here and get pricelist from our factory. For price consultation, contact us.

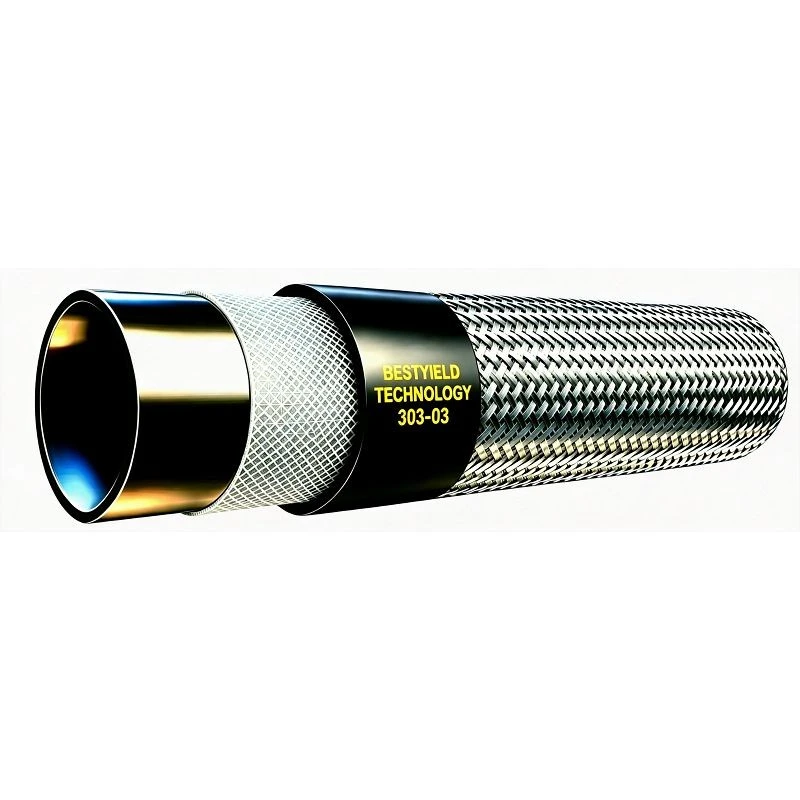

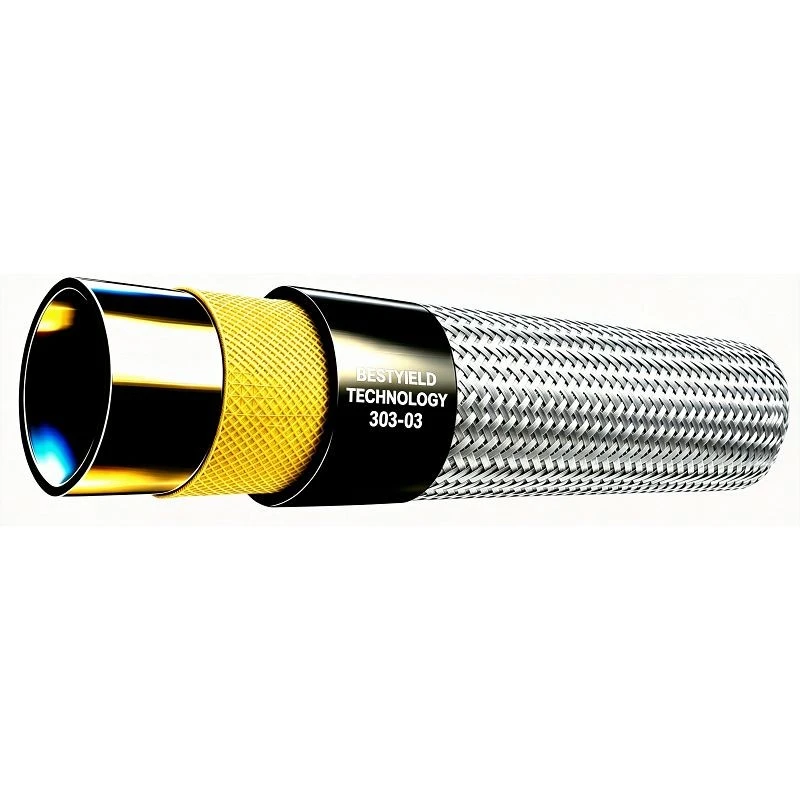

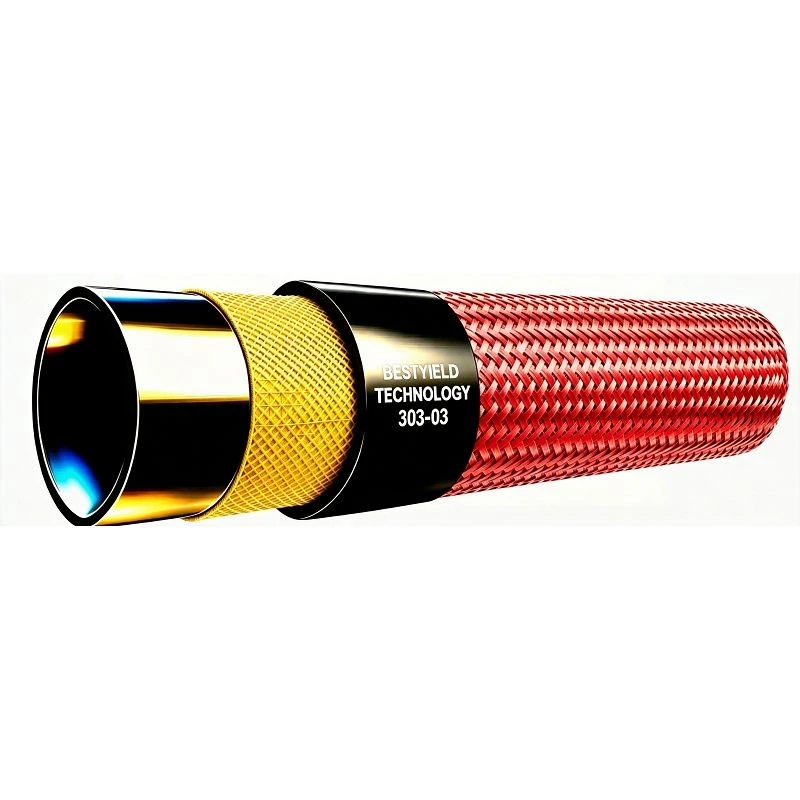

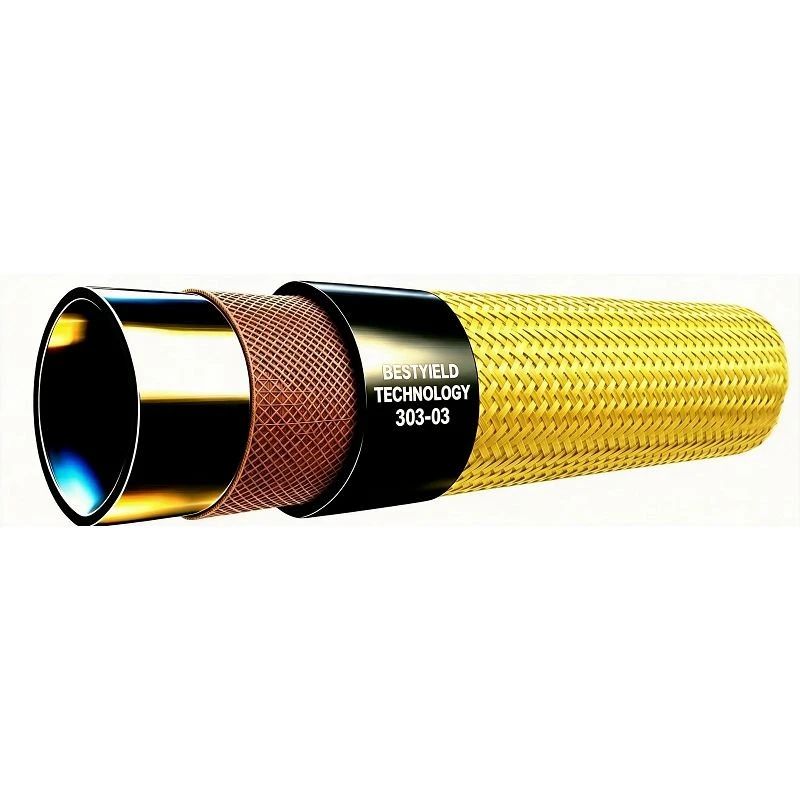

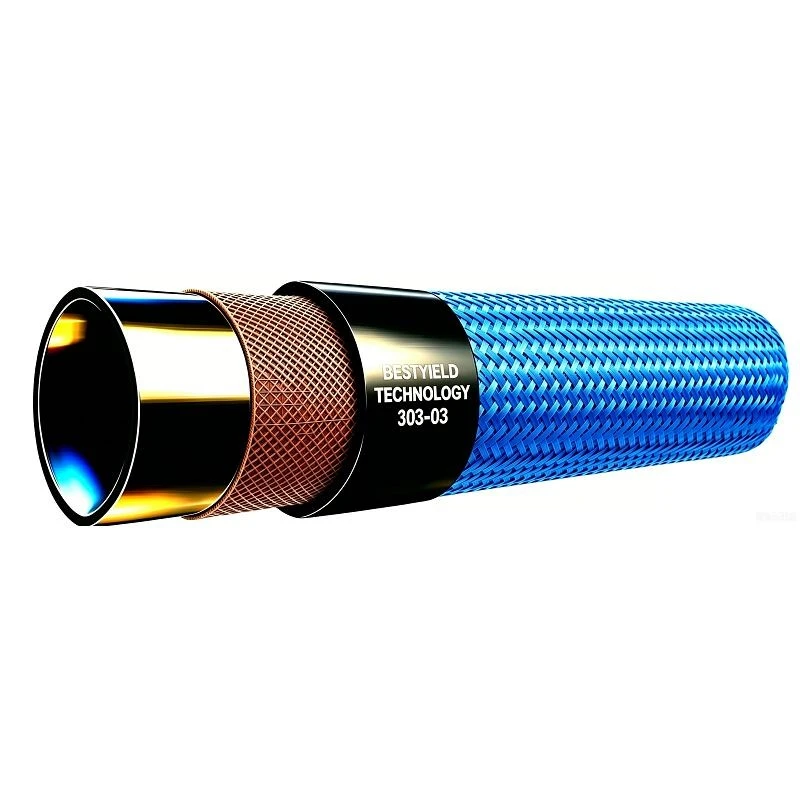

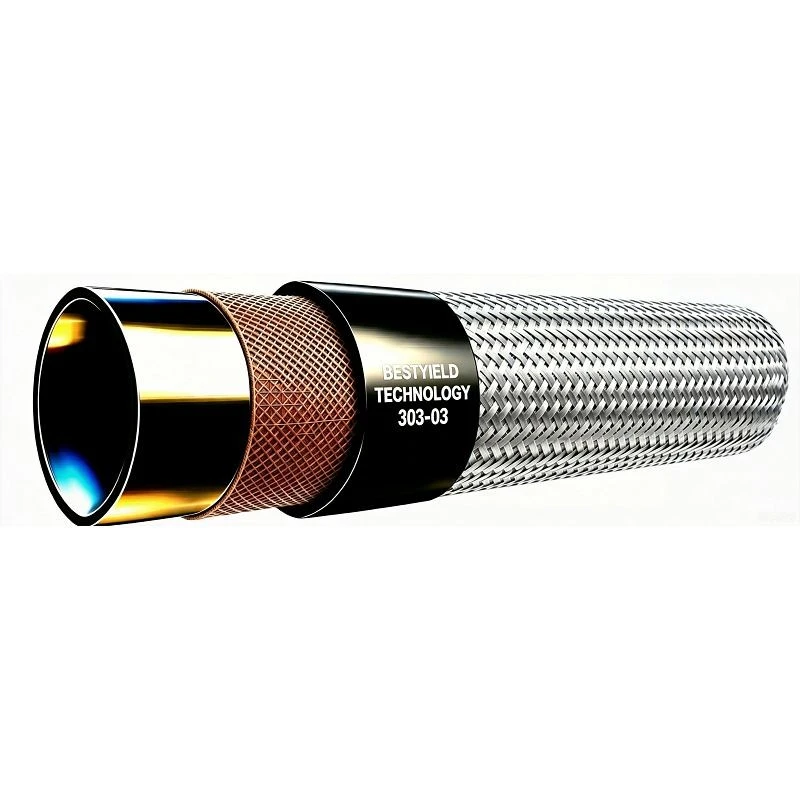

• Tube: Black EPDM
• Inside braid: Polyester fiber, Aramid fiber, Copper-plated steel wire
• Cover: EPDM, smooth finish
• Color: Black or multiple colors
• Outside braid: Polyester or stainless steel
• Temperature range: -40°C to +150°C
• Compliance standards: RoHS, REACH, HF
• Flame resistance rating: HB, V1, V2, V0, VW-1, EN45545
• Low extractables materials: Minimizes fluid contamination and permeation, ensures fluid purity
• Product service life: Exceeding 10 years
• Application: coolants like PG25 and deionized glycol mixes, air, phosphate ester



The inner tube adopts sulfur-based or peroxide curing system. It features excellent compatibility with deionized water + ethylene glycol (or propylene glycol) and resists corrosion from various chemicals.

The outer cover has obtained flame-retardant certifications such as UL94-V0. Red, yellow and blue colors are available for customers, and other colors can be customized.

It delivers superior UV resistance, ozone resistance, weather resistance, high-low temperature resistance and good electrical insulation properties, suitable for conveying media including coolant, steam, high-temperature water, hot air, weak acids and weak alkalis.

The inner layer of the hose is reinforced with polyester or aramid fibers, while the outer layer is braided with polyester yarn or stainless steel wire, achieving a working pressure of over 2.0 MPa.



IT liquid cooling, automotive liquid cooling, electric power, home appliances, rail transit and other fields.



Part Number	Hose I.D.		Hose O.D.		Working Pressure		Burst Pressure		MIN. Bend Radius
	inch	mm	inch	mm	psi	MPa	psi	MPa	inch	mm
303-01	1/8	3.2	0.31	7.9	290	2.0	870	6.0	5/8	16
303-02	3/16	4.8	0.37	9.5					3/4	19
303-03	1/4	6.3	0.50	12.7					1	25
303-04	5/16	8.0	0.55	14.0					1-3/8	35
303-05	3/8	9.5	0.63	15.9					1-9/16	39
303-06	1/2	12.7	0.79	20.0	261	1.8	783	5.4	2-3/4	70
303-07	5/8	16.0	0.94	24.0					3-1/2	89
303-08	3/4	19.0	1.06	27.0					4-1/2	115
303-09	7/8	22.2	1.26	32.0					5-1/2	140
303-10	1	25.4	1.39	35.4	218	1.5	653	4.5	6-1/2	165
303-11	1-1/4	31.8	1.77	45.0					8-1/2	216
303-12	1-1/2	38.1	2.00	50.8					9-9/16	243
303-13	1-3/4	44.5	2.32	59.0					11-1/8	283
303-14	2	50.8	2.76	70.0					13-1/4	336
303-15	2-1/2	63.5	3.07	78.0					14-3/4	375
303-16	3	76.2	3.54	90.0					17	432
303-17	3-1/2	89.0	4.13	105.0					19-13/16	504
303-18	4	101.6	4.72	120.0					22-11/16	576



• Remarks: Inner and outer diameter sizes are customizable.



Unlike IIR and CIIR hoses that are used to glycol-based coolants, the EPDM compound in this hose series is uniquely compatible with glycol-based coolants, PG25,steam, high-temperature water, and hot air - making the four-layer 303 series the preferred choice for applications requiring both high-temperature media conveyance and mechanical protection:



The 303 series with EPDM compound is specifically qualified for railway rolling stock applications per EN 45545, the European fire safety standard for rail vehicles. The four-layer construction addresses the unique challenges of underfloor and rooftop hose routing on trains.

Low smoke, low toxicity: In the event of a fire, the halogen-free EPDM compound and stainless steel braid produce minimal smoke and no corrosive hydrogen chloride gas - critical for passenger evacuation safety in tunnel incidents.



• Warranty: 12 months from shipment. For rail transit OEM customers, extended warranty programs available based on vehicle maintenance schedules (up to 1 years or 20,000 km).
• On-site hose survey: Our application engineers conduct on-site routing assessments for industrial and rail customers, identifying abrasion hotspots, recommending optimal braid material (polyester vs. stainless steel), and providing 3D routing drawings.
• Pre-assembled hose sets: Factory-installed fittings with steam-rated crimp sleeves, pressure-tested at 2× working pressure. Available for all 303 series diameters. Reduces on-site assembly time by 60% and eliminates crimping errors.
• Rail-specific documentation: EN 45545 test reports, material conformity declarations, and first-article inspection reports provided as standard with every rail transit order.
