FKM Outside Braided Hose
Tube: Black FKM
Inside braid: Polyester fiber, Aramid fiber, Copper-plated steel wire
Cover: FKM or ECO; smooth finish
Color: Black or multiple colors
Outside braid: Polyester or stainless steel
Temperature range: -40°C to +200°C
- Product Introduction
BESTYIELD Technology (Huizhou) Co., Ltd. is one of the leading manufacturers and suppliers of fkm outside braided hose in China, also supports customized service. Welcome to wholesale bulk fkm outside braided hose in stock here and get pricelist from our factory. For price consultation, contact us.
Features and Benefits
- Tube: Black FKM
- Inside braid: Polyester fiber, Aramid fiber, Copper-plated steel wire
- Cover: FKM or ECO; smooth finish
- Color: Black or multiple colors
- Outside braid: Polyester or stainless steel
- Temperature range: -40°C to +200°C
- Compliance standards: RoHS, REACH
- Flame resistance rating: HB, V1, V2, V0, VW-1, EN45545
- Burst pressure safety ratio: 3:1 with outer braid reinforcement
Detailed Description

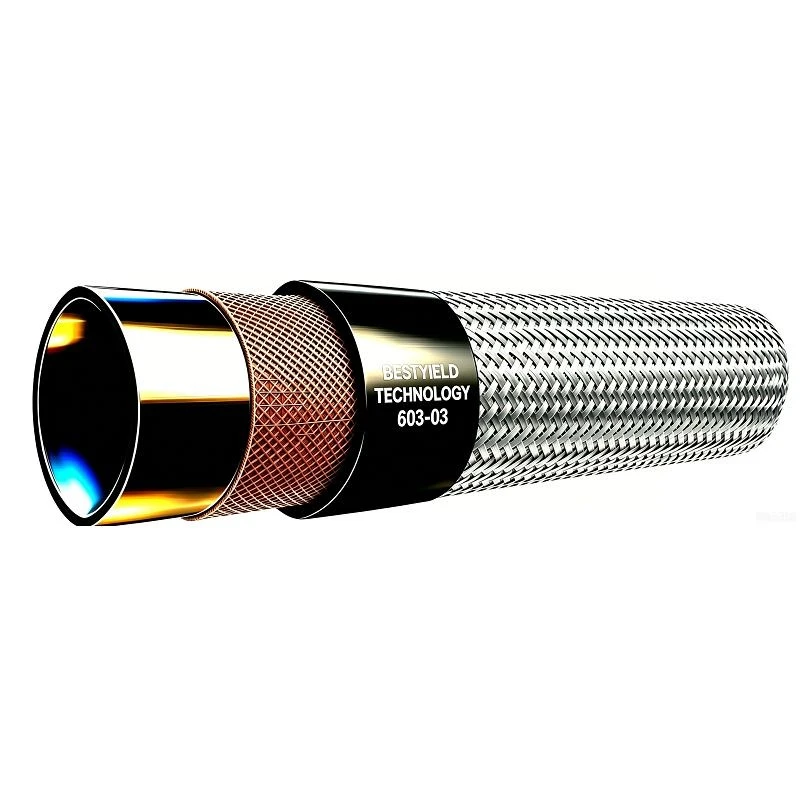

Designed for the most extreme operating conditions in aerospace and defense applications, this four-layer FKM composite hose integrates three functional elements into a unified high-performance assembly. The FKM inner tube provides unmatched chemical resistance and gas tightness, ensuring zero leakage of critical fluids even at 200°C continuous service temperature.
The braided reinforcement layer-available in polyester (standard), aramid (high-strength/high-temperature), or copper-plated steel wire (maximum pressure)-absorbs internal pressure loads while the copper-plated steel variant simultaneously provides electromagnetic interference shielding for sensitive avionics and communication equipment.
The outer stainless steel or polyester braid adds burst pressure safety margin (3:1 safety ratio) and protects the underlying layers from FOD (foreign object damage), abrasion, and UV degradation during extended field service.
Product Application
Military aircraft fuel and hydraulic systems; satellite propellant transfer lines; armored vehicle hydraulic circuits; naval shipboard fuel systems; missile guidance system cooling loops; radar cooling circuits; unmanned aerial vehicle (UAV) fuel delivery.
FAQ
Q1: What is the advantage of copper-plated steel wire braid in aerospace applications?
A: Copper-plated steel wire provides both structural reinforcement and EMI shielding in a single layer, reducing weight and assembly complexity compared to separate shielding solutions.
Q2: Can you provide first article inspection (FAI) reports?
A: Yes, we provide dimensional inspection, material certification, and performance test data.
Custom configurations available with engineering support. Prototype samples within 5 working days.
Product Parameters
|
Part |
Hose I.D. |
Hose O.D. |
Working Pressure |
Burst Pressure |
MIN. Bend Radius |
|||||
|
inch |
mm |
inch |
mm |
psi |
MPa |
psi |
MPa |
inch |
mm |
|
|
603-01 |
1/8 |
3.2 |
0.31 |
7.9 |
290 |
2.0 |
870 |
6.0 |
5/8 |
16 |
|
603-02 |
3/16 |
4.8 |
0.37 |
9.5 |
3/4 |
19 |
||||
|
603-03 |
1/4 |
6.3 |
0.50 |
12.7 |
1 |
25 |
||||
|
603-04 |
5/16 |
8.0 |
0.55 |
14.0 |
1-3/8 |
35 |
||||
|
603-05 |
3/8 |
9.5 |
0.63 |
15.9 |
1-9/16 |
39 |
||||
|
603-06 |
1/2 |
12.7 |
0.79 |
20.0 |
261 |
1.8 |
783 |
5.4 |
2-3/4 |
70 |
|
603-07 |
5/8 |
16.0 |
0.94 |
24.0 |
3-1/2 |
89 |
||||
|
603-08 |
3/4 |
19.0 |
1.06 |
27.0 |
4-1/2 |
115 |
||||
|
603-09 |
7/8 |
22.2 |
1.26 |
32.0 |
5-1/2 |
140 |
||||
|
603-10 |
1 |
25.4 |
1.39 |
35.4 |
6-1/2 |
165 |
||||
- Remarks: Inner and outer diameter sizes are customizable.
Hot Tags: fkm outside braided hose, China fkm outside braided hose manufacturers, suppliers, factory
