Pre-formed Rubbe Tubing
Pre-formed tube: IIR+EPDM, CIIR+EPDM,EPDM
Color: Black or multiple colors
Temperature range: -40°C to +150°C
Compliance standards: RoHS, REACH, HF
Flame resistance rating: HB, V1, V2, V0, VW-1, EN45545
- Product Introduction
BESTYIELD Technology (Huizhou) Co., Ltd. is one of the leading manufacturers and suppliers of pre-formed rubbe tubing in China, also supports customized service. Welcome to wholesale bulk pre-formed rubbe tubing in stock here and get pricelist from our factory. For price consultation, contact us.
Features and Benefits
- Pre-formed tube: IIR+EPDM, CIIR+EPDM,EPDM
- Color: Black or multiple colors
- Temperature range: -40°C to +150°C
- Compliance standards: RoHS, REACH, HF
- Flame resistance rating: HB, V1, V2, V0, VW-1, EN45545
- Low extractables materials: Minimizes fluid contamination and permeation, ensures fluid purity
- Product service life: Exceeding 10 years
- Fluid: coolants like PG25 and deionized glycol mixes, air, phosphate ester
Detailed Description

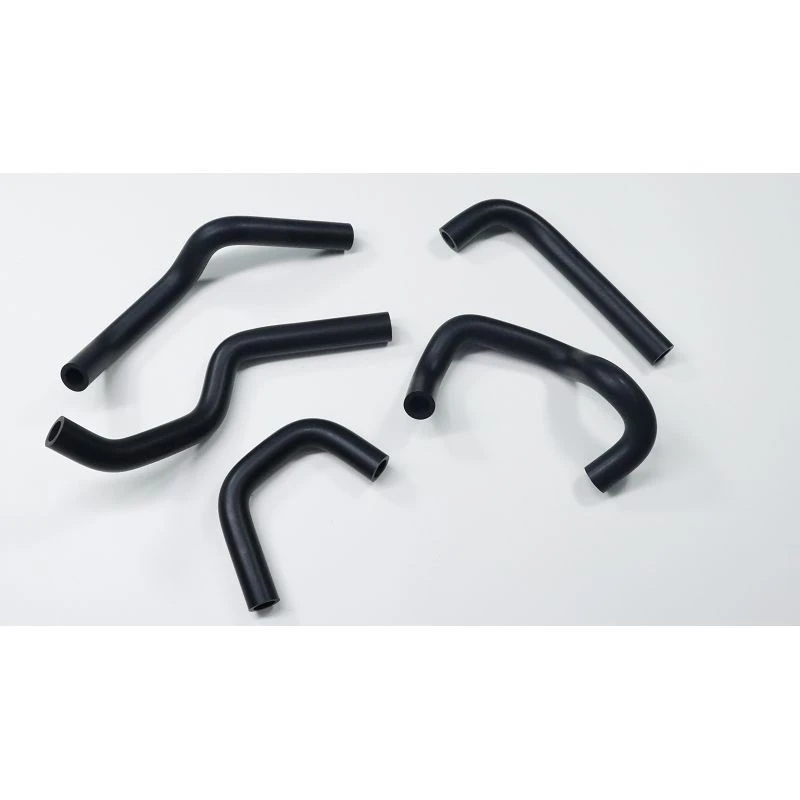

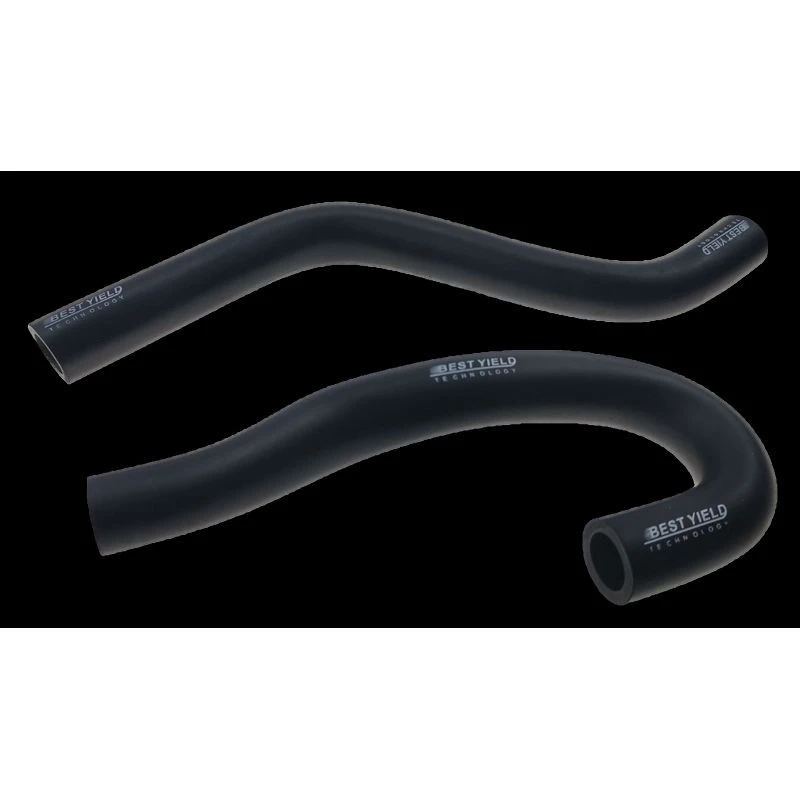

Pre-formed hoses are permanently shaped during production to designated angles and bends. They require no on-site bending, eliminating internal stress caused by forced deformation.
The inner diameter remains full and round after forming, ensuring stable flow and low pressure drop. Featuring excellent vibration resistance and fatigue resistance, these hoses have a long service life. They allow quick and easy installation with reliable sealing performance. Various rubber and plastic materials are available to adapt to different temperature, pressure and media conditions.
Product Application
Data centers, personal PCs, automobiles, projectors, new energy vehicles, charging piles, etc.
Product Parameters
|
Part |
Hose I.D. |
Hose O.D. |
Working Pressure |
Burst Pressure |
||||
|
inch |
mm |
inch |
mm |
psi |
MPa |
psi |
MPa |
|
|
1101-01 |
1/8 |
3.2 |
0.31 |
7.9 |
73 |
0.5 |
363 |
2.5 |
|
1101-02 |
3/16 |
4.8 |
0.37 |
9.5 |
||||
|
1101-03 |
1/4 |
6.3 |
0.50 |
12.7 |
||||
|
1101-04 |
5/16 |
8.0 |
0.55 |
14.0 |
||||
|
1101-05 |
3/8 |
9.5 |
0.63 |
15.9 |
||||
|
1101-06 |
1/2 |
12.7 |
0.79 |
20.0 |
44 |
0.3 |
145 |
1.0 |
|
1101-07 |
5/8 |
16.0 |
0.94 |
24.0 |
||||
|
1101-08 |
3/4 |
19.0 |
1.06 |
27.0 |
||||
|
1101-09 |
7/8 |
22.2 |
1.26 |
32.0 |
||||
|
1101-10 |
1 |
25.4 |
1.39 |
35.4 |
||||
|
1101-11 |
1-1/4 |
31.8 |
1.77 |
45.0 |
||||
|
1101-12 |
1-1/2 |
38.1 |
2.00 |
50.8 |
||||
|
1101-13 |
1-3/4 |
44.5 |
2.32 |
59.0 |
||||
|
1101-14 |
2 |
50.8 |
2.76 |
70.0 |
||||
- Remarks: Inner and outer diameter sizes are customizable.
