NBR Outside Braided Hose
Tube: Black NBR, halogen free
Inside braid: Polyester fiber, Aramid fiber, Copper-plated steel wire
Cover: NBR or CPE, CSM, PVC, smooth finish
Color: Black or multiple colors
Outside braid: Polyester or stainless steel
Temperature range: -40°C to +120°C
- Product Introduction
BESTYIELD Technology (Huizhou) Co., Ltd. is one of the leading manufacturers and suppliers of nbr outside braided hose in China, also supports customized service. Welcome to wholesale bulk nbr outside braided hose in stock here and get pricelist from our factory. For price consultation, contact us.
Features and Benefits
- Tube: Black NBR, halogen free
- Inside braid: Polyester fiber, Aramid fiber, Copper-plated steel wire
- Cover: NBR or CPE, CSM, PVC, smooth finish
- Color: Black or multiple colors
- Outside braid: Polyester or stainless steel
- Temperature range: -40°C to +120°C
- Compliance standards: RoHS, REACH
- Flame resistance rating: HB, V1, V2, V0, VW-1, EN45545
- High-pressure class: Working pressure exceeding 2.0 MPa / 290 psi with dual braid synergy
- Production process: Compound Mixing → Tube Extrusion → Inside Braiding → Cover Extrusion →Vulcanization → Outside Braiding → Inspection → Packaging
Detailed Description

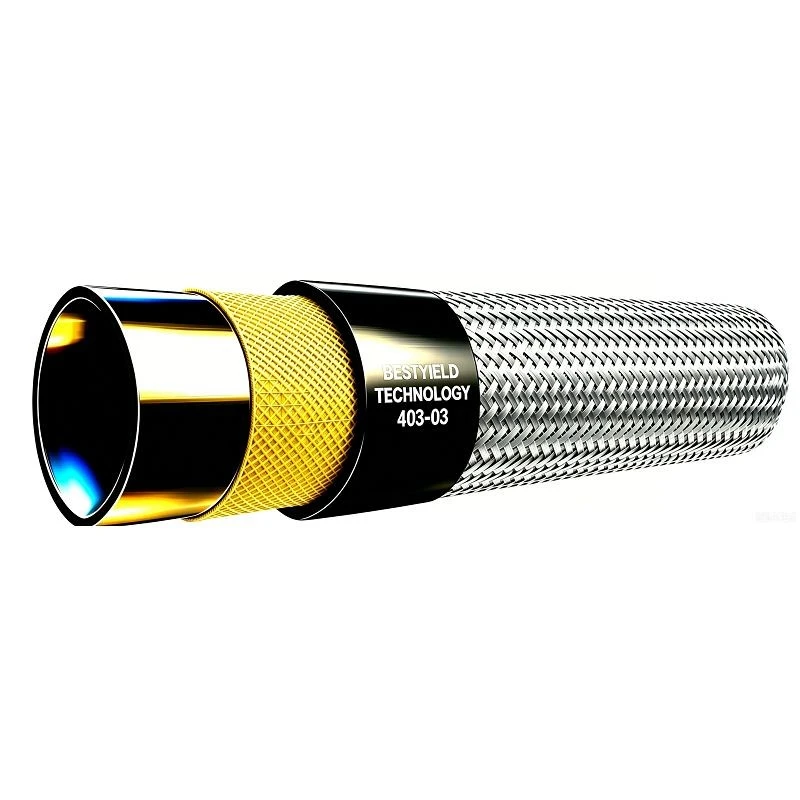

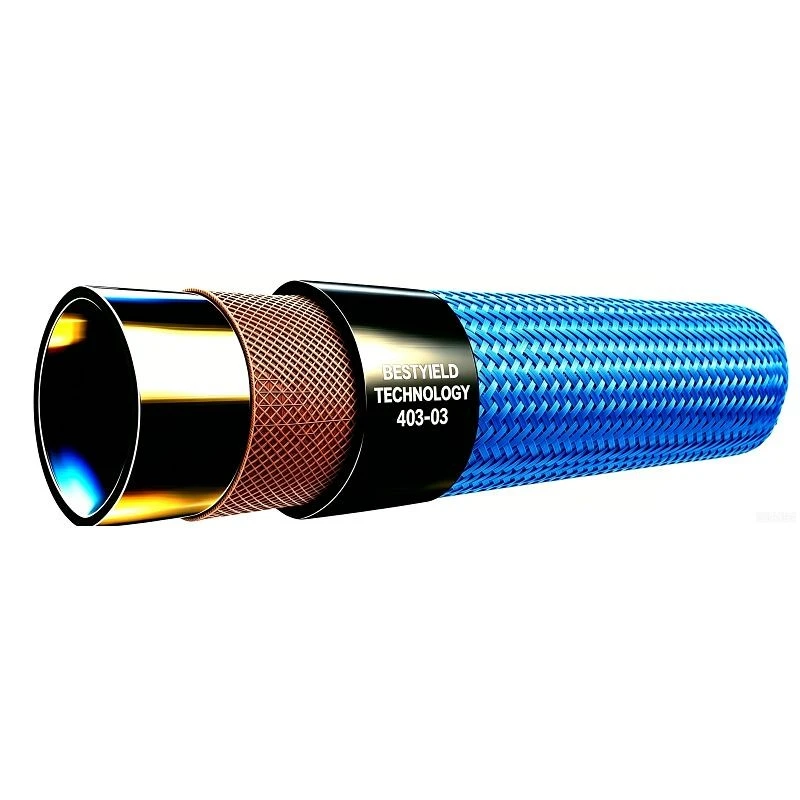

This high-pressure composite hose employs a four-layer architecture: NBR inner tube, inner braid reinforcement, polymer cover, and outer stainless steel or polyester braid. The dual-braid configuration creates a synergistic load-bearing system where the inner braid (polyester/aramid/copper-plated steel) handles sustained working pressure while the outer braid (polyester/stainless steel) provides additional burst pressure margin and mechanical protection against external impacts.
The inner braid is applied at a precise 55° neutral angle during the braiding process, ensuring optimal balance between axial flexibility and radial pressure containment. The outer braid serves as both a pressure safety reserve and an anti-abrasion shield, extending service life in demanding industrial environments. This configuration achieves working pressures exceeding 2.0 MPa (290 psi)-significantly higher than single-braid alternatives.
Production Process: The four-layer structure is built through sequential mandrel assembly- tube extrusion, inner braiding, cover extrusion-followed by vulcanization to ensure interlayer bonding integrity. Conduct inspection after vulcanization, then perform outside braiding. Each production batch undergoes hydrostatic proof pressure testing at 1.5MPa.
Product Application
Heavy machinery hydraulic circuits; high-pressure oil transfer systems; industrial hydraulic power units; construction equipment boom cylinders; mining hydraulic systems; steel mill hydraulic lines; offshore platform hydraulic controls.
Company Capabilities & FAQ
Our factory covers 15,000 square meters with 8 automated braiding production lines and an annual capacity exceeding 2 million meters of braided hose. We hold ISO 9001 and IATF 16949 certifications.
Q: What is the difference between polyester and stainless steel outer braid?
A: Polyester outer braid provides lightweight abrasion protection at lower cost; stainless steel outer braid delivers maximum burst pressure safety margin and corrosion resistance in marine or chemical environments.
Q: Can you customize the braid angle or braid density?
A: Yes, we can adjust braid parameters based on specific pressure-flexibility requirements. Please contact our engineering team for custom specifications.
Standard delivery time is 15-20 working days after order confirmation. Free samples are available for qualified buyers.
Product Parameters
|
Part |
Hose I.D. |
Hose O.D. |
Working Pressure |
Burst Pressure |
MIN. Bend Radius |
|||||
|
inch |
mm |
inch |
mm |
psi |
MPa |
psi |
MPa |
inch |
mm |
|
|
403-01 |
1/8 |
3.2 |
0.31 |
7.9 |
290 |
2.0 |
870 |
6.0 |
5/8 |
16 |
|
403-02 |
3/16 |
4.8 |
0.37 |
9.5 |
3/4 |
19 |
||||
|
403-03 |
1/4 |
6.3 |
0.50 |
12.7 |
1 |
25 |
||||
|
403-04 |
5/16 |
8.0 |
0.55 |
14.0 |
1-3/8 |
35 |
||||
|
403-05 |
3/8 |
9.5 |
0.63 |
15.9 |
1-9/16 |
39 |
||||
|
403-06 |
1/2 |
12.7 |
0.79 |
20.0 |
261 |
1.8 |
783 |
5.4 |
2-3/4 |
70 |
|
403-07 |
5/8 |
16.0 |
0.94 |
24.0 |
3-1/2 |
89 |
||||
|
403-08 |
3/4 |
19.0 |
1.06 |
27.0 |
4-1/2 |
115 |
||||
|
403-09 |
7/8 |
22.2 |
1.26 |
32.0 |
5-1/2 |
140 |
||||
|
403-10 |
1 |
25.4 |
1.39 |
35.4 |
218 |
1.5 |
653 |
4.5 |
6-1/2 |
165 |
|
403-11 |
1-1/4 |
31.8 |
1.77 |
45.0 |
8-1/2 |
216 |
||||
|
403-12 |
1-1/2 |
38.1 |
2.00 |
50.8 |
9-9/16 |
243 |
||||
|
403-13 |
1-3/4 |
44.5 |
2.32 |
59.0 |
11-1/8 |
283 |
||||
|
403-14 |
2 |
50.8 |
2.76 |
70.0 |
13-1/4 |
336 |
||||
|
403-15 |
2-1/2 |
63.5 |
3.07 |
78.0 |
14-3/4 |
375 |
||||
|
403-16 |
3 |
76.2 |
3.54 |
90.0 |
17 |
432 |
||||
|
403-17 |
3-1/2 |
89.0 |
4.13 |
105.0 |
19-13/16 |
504 |
||||
|
403-18 |
4 |
101.6 |
4.72 |
120.0 |
22-11/16 |
576 |
||||
- Remarks: Inner and outer diameter sizes are customizable.
