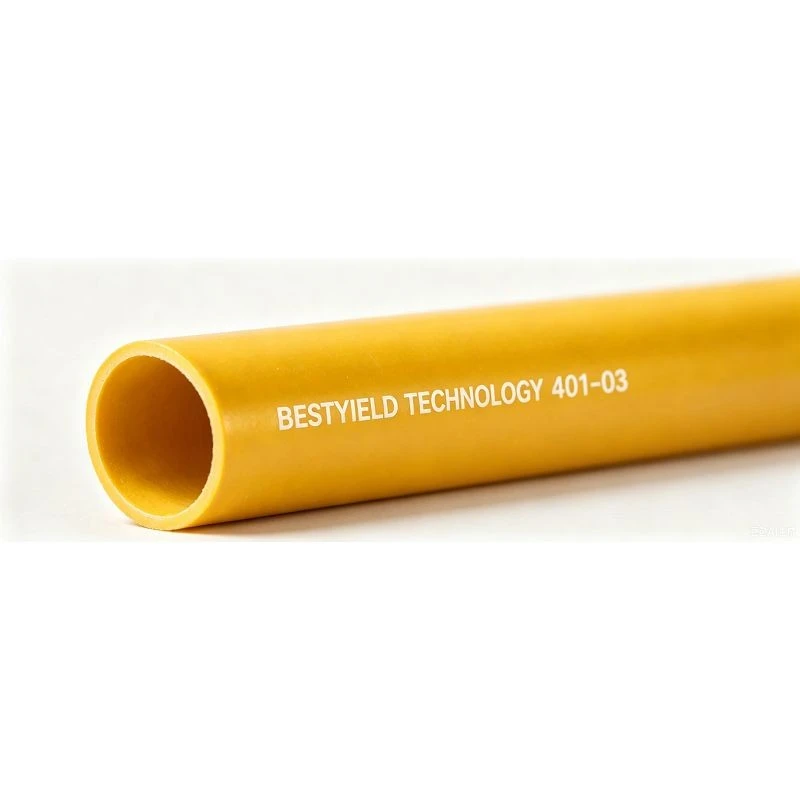

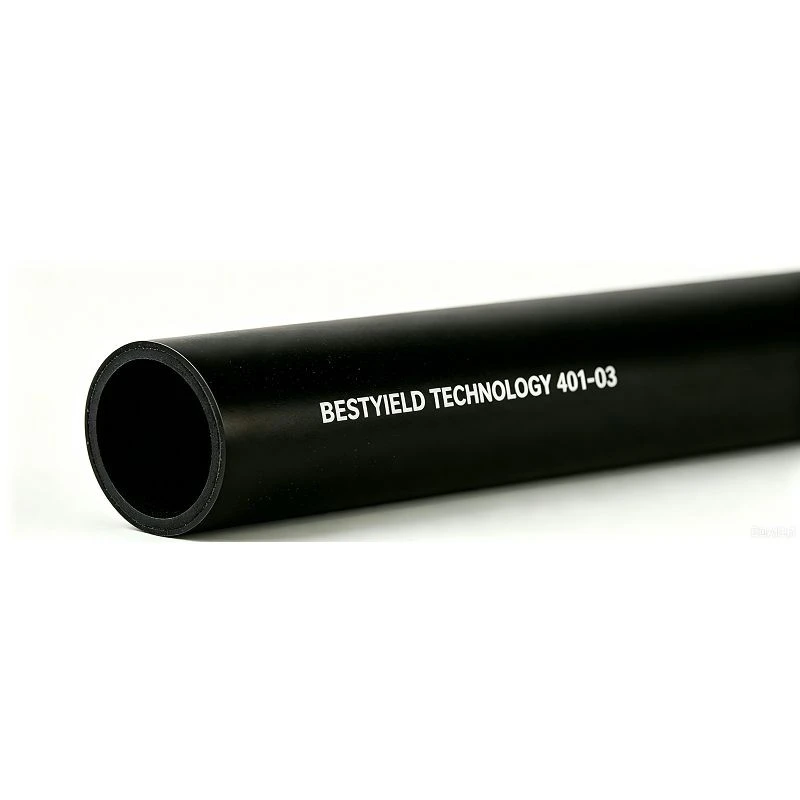

NBR Tubing
Tube: NBR, halogen free

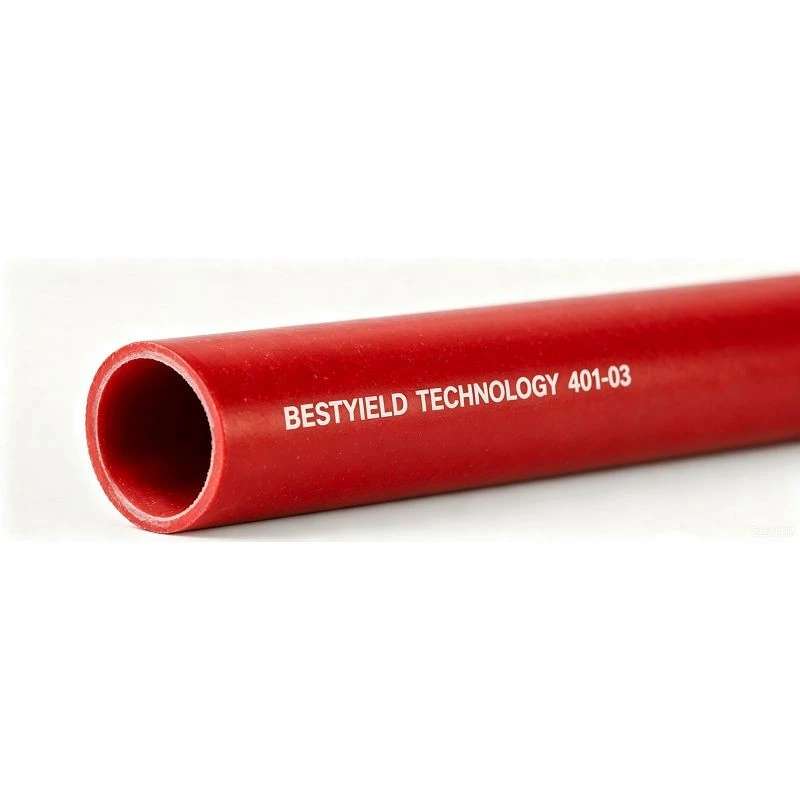

Color: Black or multiple colors

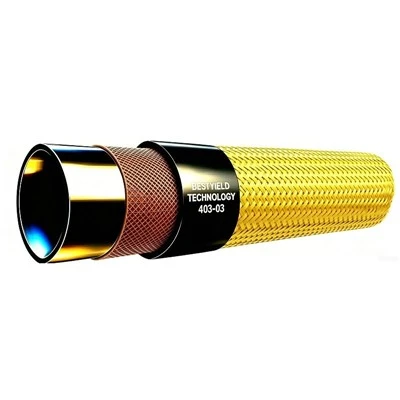

Outside braid: Polyester or stainless steel (Optional)
Temperature range: -40°C to +120°C
Compliance standards: RoHS, REACH, HF
Flame resistance rating: HB, V1, V2, V0, VW-1, EN45545
- Product Introduction
BESTYIELD Technology (Huizhou) Co., Ltd. is one of the leading manufacturers and suppliers of nbr tubing in China, also supports customized service. Welcome to wholesale bulk nbr tubing in stock here and get pricelist from our factory. For price consultation, contact us.
Features and Benefits
- Tube: NBR, halogen free
- Color: Black or multiple colors
- Outside braid: Polyester or stainless steel (Optional)
- Temperature range: -40°C to +120°C
- Compliance standards: RoHS, REACH, HF
- Flame resistance rating: HB, V1, V2, V0, VW-1, EN45545
Detailed Description
The molecular chains of NBR contain acrylonitrile groups, which endow the material with outstanding oil resistance and mechanical strength. It can effectively resist erosion from gasoline, diesel fuel, lubricating oil, hydraulic oil and other oils. With an operating temperature range of -40℃ to 120℃.
Product Application
Transfer and delivery of propane and butane. Low pressure/high temperature fuel for passenger cars and light trucks; Also small engine applications; Marine fuel, oil and lube hose is specially designed for gas and diesel marine engines. Most commonly used for medium pressure LP gas service.
Product Parameters
|
Part |
Hose I.D. |
Hose O.D. |
Working Pressure |
Burst Pressure |
MIN. Bend Radius |
|||||
|
inch |
mm |
inch |
mm |
psi |
MPa |
psi |
MPa |
inch |
mm |
|
|
401-01 |
1/8 |
3.2 |
0.31 |
7.9 |
72.5 |
0.5 |
217.5 |
1.5 |
1-9/16 |
40 |
|
401-02 |
3/16 |
4.8 |
0.37 |
9.5 |
1-3/4 |
45 |
||||
|
401-03 |
1/4 |
6.3 |
0.50 |
12.7 |
2-9/16 |
65 |
||||
|
401-04 |
5/16 |
8.0 |
0.55 |
14.0 |
2-3/4 |
70 |
||||
|
401-05 |
3/8 |
9.5 |
0.63 |
15.9 |
3-1/8 |
80 |
||||
|
401-06 |
1/2 |
12.7 |
0.79 |
20.0 |
43.5 |
0.3 |
145 |
1.0 |
3-15/16 |
100 |
|
401-07 |
5/8 |
16.0 |
0.94 |
24.0 |
4-3/4 |
120 |
||||
|
401-08 |
3/4 |
19.0 |
1.06 |
27.0 |
5-5/16 |
135 |
||||
|
401-09 |
7/8 |
22.2 |
1.26 |
32.0 |
6-5/16 |
160 |
||||
|
401-10 |
1 |
25.4 |
1.39 |
35.4 |
7 |
178 |
||||
|
401-11 |
1-1/4 |
31.8 |
1.77 |
45.0 |
8-7/8 |
225 |
||||
|
401-12 |
1-1/2 |
38.1 |
2.00 |
50.8 |
10 |
254 |
||||
|
401-13 |
1-3/4 |
44.5 |
2.32 |
59.0 |
11-5/8 |
295 |
||||
|
401-14 |
2 |
50.8 |
2.76 |
70.0 |
13-3/4 |
350 |
||||
|
401-15 |
2-1/2 |
63.5 |
3.07 |
78.0 |
15-3/8 |
390 |
||||
|
401-16 |
3 |
76.2 |
3.54 |
90.0 |
17-11/16 |
450 |
||||
|
401-17 |
3-1/2 |
89.0 |
4.13 |
105.0 |
20-11/16 |
525 |
||||
|
401-18 |
4 |
101.6 |
4.72 |
120.0 |
23-5/8 |
600 |
||||
- Remarks: Inner and outer diameter sizes are customizable; parameters in parentheses represent the outside braided structure.
